Engine Capacity
299.1 cc
Max Power
36 PS @ 9,000 rpm
Kerb Weight
180 Kg
Apache RTX Features
Rally inspired Design
The 4-Valve Liquid Cooled 299.1 cc engine mated to a 6-speed gearbox produces 36 PS power and 28.5 Nm torque. Tuned to deliver torque across the rev range, 4 Dual Tech technology ensures maximum performance through challenging situations.
Engine
Optimised Ergonomics
The balanced design and precise steering geometry ensure effortless handling. Whether riding standing up or on the saddle, the ergonomics perfectly sets the rider up to tackle obstacles on the trails.
Engine
Class D LED Headlamp
See clearer and further with brightest-in-segment Class D LED Headlamps with Dynamic & Automatic Headlamp Control. The Welcome & Goodbye animation on DRLs adds sophistication, while the Take Me Home feature keeps headlamps on briefly after shutdown.
TOUR
Bi-Directional Quickshifter
Shift gears effortlessly without clutch or throttle input, keeping your focus on the road. It enables smooth, rapid gear changes, helping to reduce fatigue even when the situation demands frequent gear changes.
TOUR
Cruise Control
Tour relaxed and fatigue-free with cruise control, maintaining steady speeds for enhanced fuel efficiency. Seamlessly change gears while cruising and override instantly for complete control on every journey.
TOUR
5" TFT Cluster
The new 5” TFT cluster with its advanced navigation system allows you to project maps through map mirroring via the SmartXonnect app, offering seamless real-time navigation.
TFT
4 Ride Modes
Choose between 4 ride modes: Urban mode delivers smooth, responsive power for city streets. Rain mode ensures linear acceleration on wet roads. Tour mode balances power and efficiency for all-day cruising. And when the trail gets wild, Rally mode unleashes raw performance for total control.
Ride Mode
Tall Visor
Stay comfortable and controlled with the optimised wind deflection of the tall visor reducing the airflow hitting your helmet, minimalising wind buffeting and fatigue.
Visor
Contoured Seat
The touring-optimised contoured seats are well-padded for lasting comfort. The ample dimensions also enables you to move freely along the length and breadth to optimise positioning as various situations demand.
Visor
upside down Frint Suspension
Smooth out even the harshest terrains with the 41 mm dia upside down front suspension. With 180 mm of travel, the front suspension offers superior ride and handling, tuned to absorb high-energy impacts with ease.
Visor
Monotube Rear Suspension
Experience superior ride over tarmac and have the confidence to tackle rugged off-road trails with the 180 mm travel monoshock floating piston rear suspension which offers precise damping and smooth dynamic response.
Monotube
High Ground Clearence
With an impressive 200mm ground clearance, this machine is designed to conquer the toughest off-road trails with utmost confidence. Whether navigating rocky paths or uneven terrain, the elevated clearance ensures optimal stability, protection, and confidence.
Ground Clearence
Switchable Rear ABS
Switchable Rear ABS gives you the freedom to conquer tough trails. Turn it off for better control on loose, uneven surfaces, allowing precise braking and confident handling during off-road adventures. Perfect for riders who demand full control in the wild.
ABS
Traction Control
From rain-slicked highways to twisting mountain passes, ride with perfect control. The advanced Traction Control system dynamically adjusts torque based on surface conditions to prevent wheel spin, ensuring optimal grip and smooth acceleration.
Traction
Adventure Oriented Tyres
Ride comfortably in all weather conditions with the wide tread block tyres. The rounded and extended shoulder profile enhances cornering stability, while the high-grip Tri-Polymer compound ensures excellent grip providing unmatched control on any terrain.
Tyres

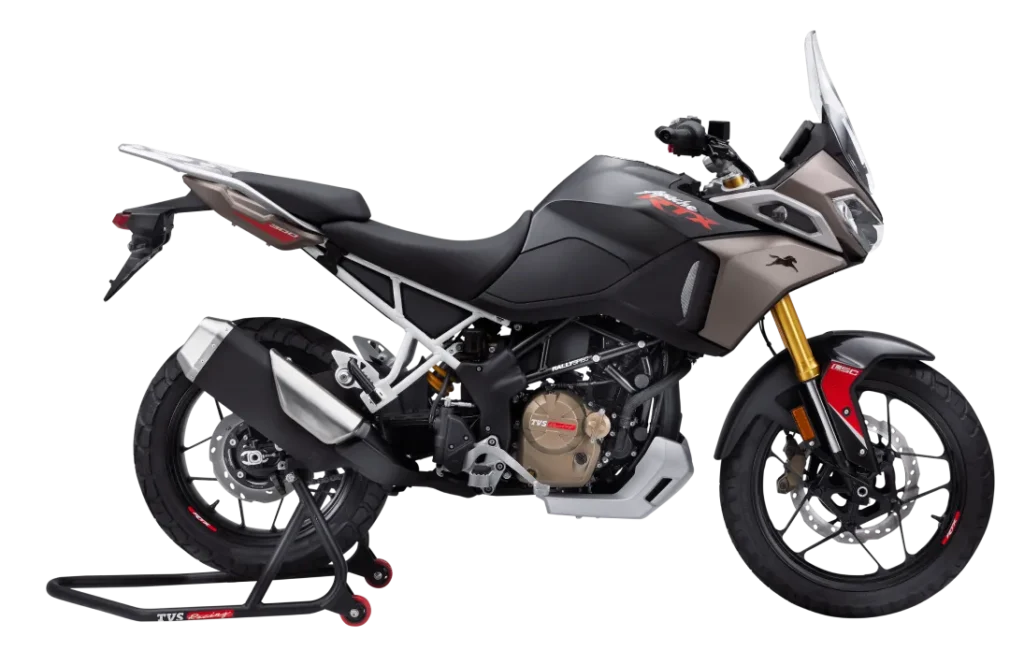

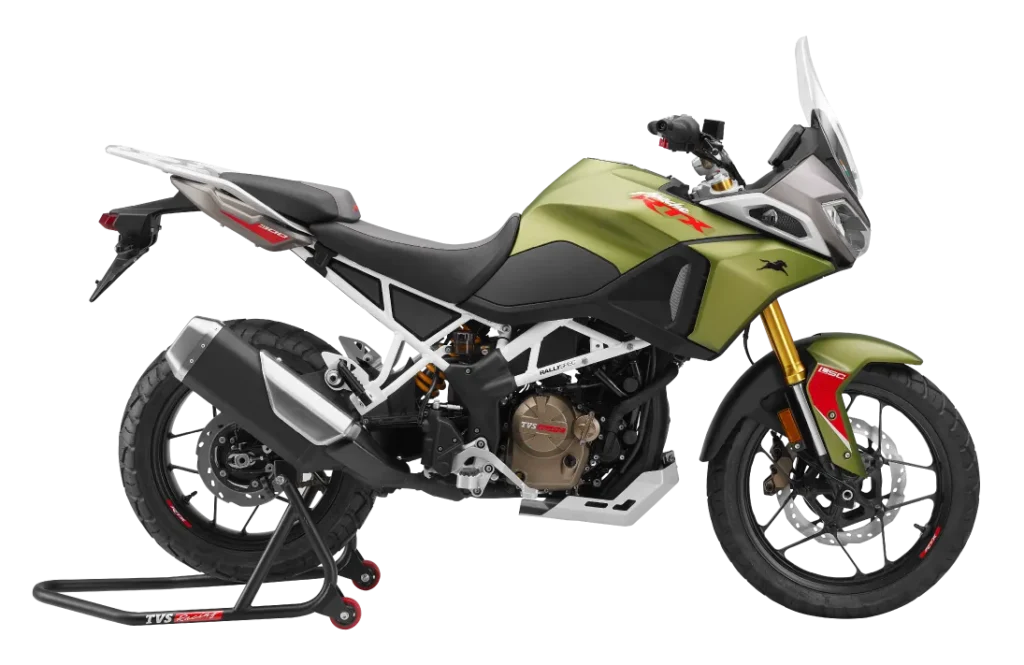

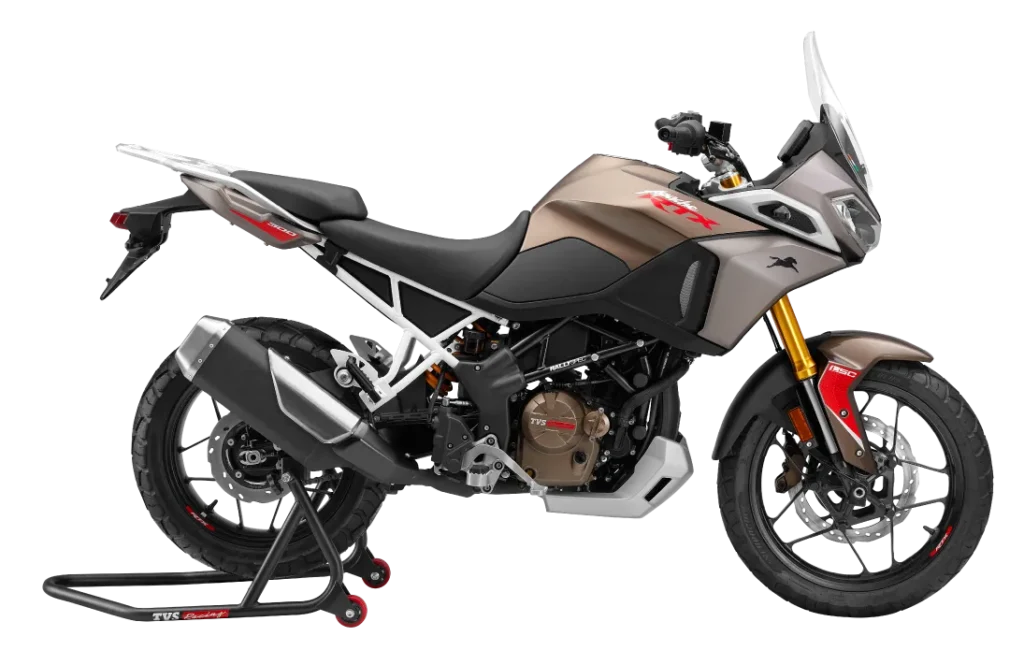

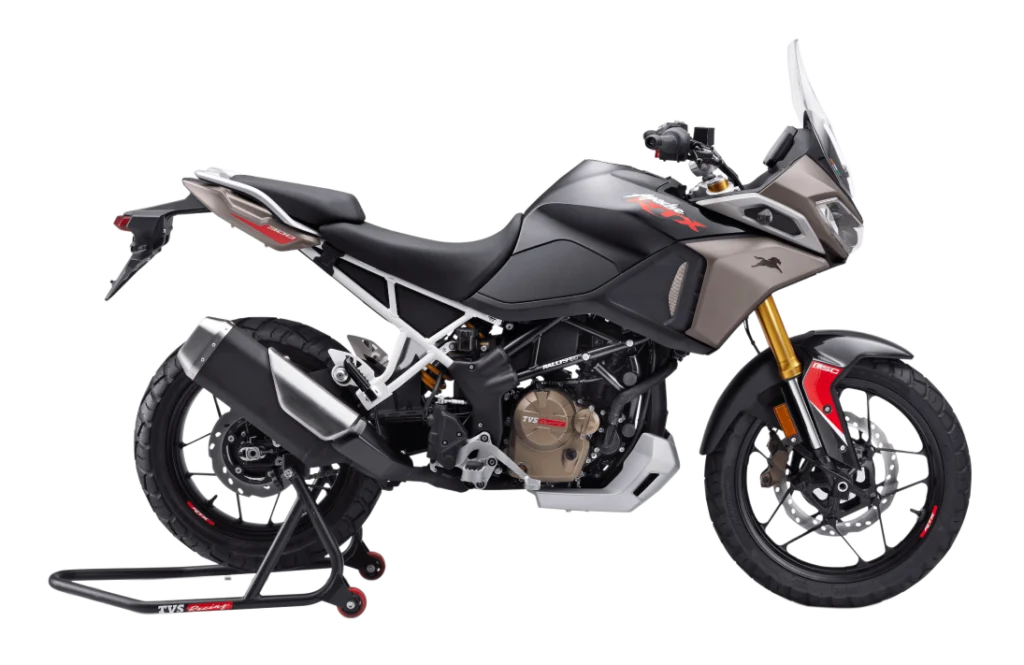

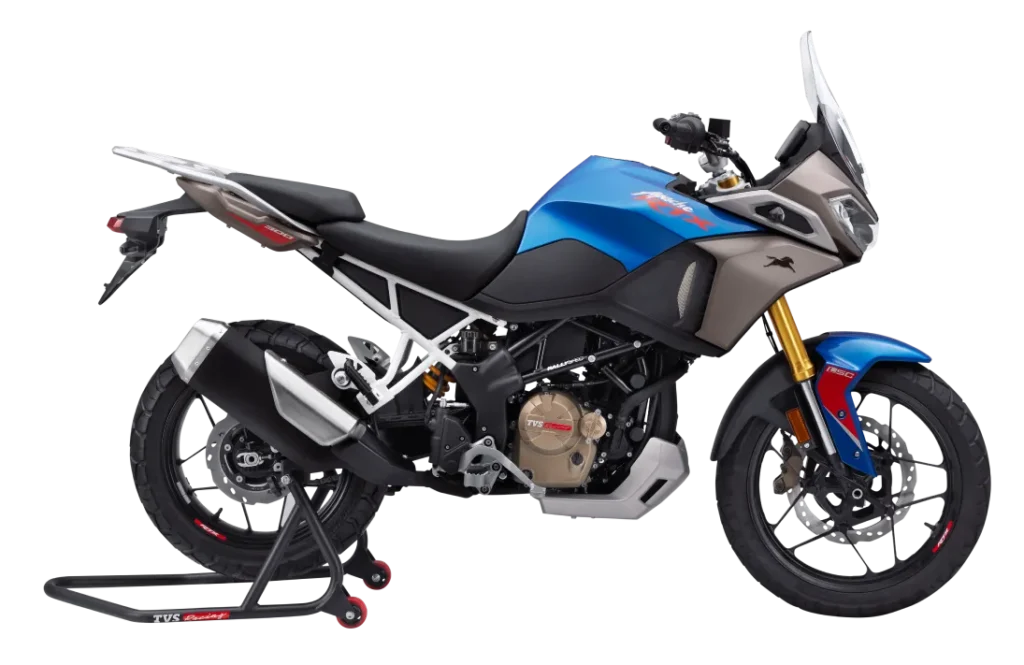

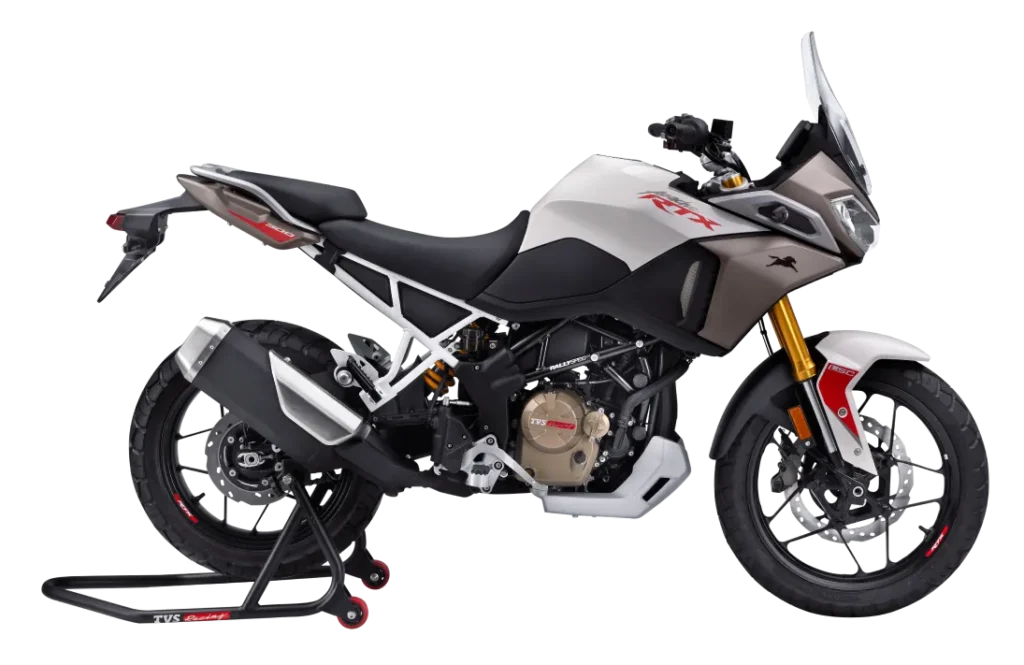

Apache RTX Variants & Colors
COLORS
Apache RTX Specifications
Engine
| Capacity | 299.1 cc |
|---|---|
| Type | Single Cylinder, Liquid Cooled, DOHC, 4 Valve |
| Max Power | 36 PS @ 9,000 rpm |
| Max Torque | 28.5 Nm @ 7,000 rpm |
| Transmission | 6-Speed Manual Transmission |
| Bore x Stroke | 78 mm x 62.6 mm |
| Clutch | Wet Multi-Plate Lean Segment Assist and Slipper Clutch |
| Starting System | Electric Start |
| Throttle | Electronic Throttle Body (Ride-By-Wire) |
Dimension
| Length x Breadth x Height | 1848 × 665 × 1158 mm |
|---|---|
| Wheel Base | 1275 mm |
| Kerb Weight | 180 kg |
| Seat Height | 835 mm |
| Ground Clearance | 200 mm |
| Fuel Tank Capacity | 12.5 litres |
Suspension
| Frame | Steel Trellis Frame Hinged With Aluminium Cast Swingarm |
|---|---|
| Front Suspension | USD Forks, Ø 41mm |
| Rear Suspension | Monoshock with Floating Piston |
| Front Suspension Travel | 180 mm |
| Rear Suspension Travel | 180 mm |
Brakes & Tyres
| Front Braking | 320 mm, Radial Caliper |
|---|---|
| Rear Braking | 240 mm, Floating Caliper |
| ABS | Dual Channel, Switchable Rear |
| Front Tyre | 110/80 – 19, Tubeless |
| Rear Tyre | 150/70 – 17, Tubeless |
Electricals
| Headlight | Twin Class D Symmetric LED Headlight with Signature DRL |
|---|---|
| Tail Light | LED, Dynamic Braking Light |
| Turn Signal Lamp | LED |
| Speedometer | 5’’ TFT Cluster with TVS SmartXonnect |
| Battery Type | 12V, 8Ah, VRLA |
Electronic Rider Aids
| Ride Mode /strong> | 4 Mode (Urban, Rain, Tour, Rally) |
|---|---|
| Connectivity | TVS SmartXonnect with Map Mirroring* |
| Automatic Headlamp Control | Yes* |
| Dynamic Headlamp | Yes* |
| Switchable ABS | Yes* |
| Bi-Directional Quickshifter | Yes* |
| Multi Level Traction Control System | Yes* |
| Cruise Control | Yes* |
| * Only available in Top & BTO variant |
